GIICLZ型接中间轴鼓形齿式联轴器

产品说明

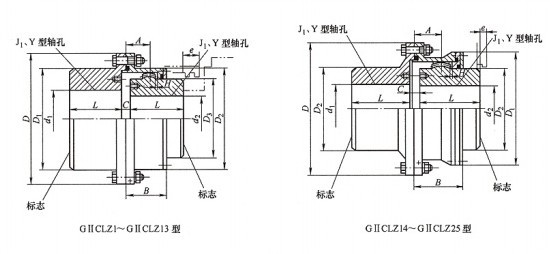

型号	公称转矩Tn kN.m	许用转速[n] r/min	轴孔直径 d1,d2	轴孔长度L		D	D1	D2	D3	C	H	A	B	转动惯量 kg.㎡	润滑脂用量ml	质量kg
				Y	J1
GⅡCLZ1	0.4	4000	16,18,19	42	—	103	71	71	50	8	2	18	38	0.004	31	5.7
			20,22,24	52	38									0.0038
			25,28	62	44									0.004
			30,32,35,38*	82	60									0.005
			40,42,45,48,50*	112	84									0.007
GⅡCLZ2	0.71	4000	20,22,24	52	—	115	83	83	60	8	2	21	44	0.0068	42	9.2
			25,28	62	44									0.0063
			30,32,35,38	82	60									0.007
			40,42,45,48,50,55,56*	112	84									0.008
			60*	142	107									0.01
GⅡCLZ3	1.12	4000	22,24	52	—	127	95	95	75	8	2	22	45	0.009	42	12.5
			25,28	62	44									0.011
			30,32,35,38	82	60									0.011
			40,42,45,48,50,55,56	112	84									0.0133
			60,63,65,70	142	107									0.0168
GⅡCLZ4	1.8	4000	38	82	60	149	116	116	90	8	2	24.5	49	0.0213	53	19.4
			40,42,45,48,50,55,56	12	84									0.0225
			60,63,65,70,71,75*	142	107									0.039
			80*	172	132									0.0488
GⅡCLZ5	3.15	4000	40,42,45,48,50,55,56	112	84	167	134	134	105	10	2.5	27.5	54	0.044	77	28.5
			60,63,65,70,71,75	142	107									0.0518
			80,85,90*	172	132									0.0625
GⅡCLZ6	5	4000	45,48,50,55,56	112	84	187	153	153	125	10	2.5	28	55	0.075	91	36.2
			60,63,65,70,71,75	142	107									0.089
			80,85,90,95*	172	132									0.1043
			100,(105)	212	167									0.1065
GⅡCLZ7	7.1	3750	50,55,56	112	84	204	170	170	140	10	2.5	30	59	0.1145	108	54.3
			60,63,65,70,71,75	142	107									0.1335
			80,85,90,95	172	132									0.157
			100,(105), 110,(105)*	212	167									0.1898
GⅡCLZ8	10	3300	55,56	112	84	230	186	186	155	12	3	33.5	71	0.184	161	67.4
			60,63,65,70,71,75	142	107									0.215
			80,85,90,95	172	132									0.249
			100,110,(110),120,125	212	167									0.297
GⅡCLZ9	16	3000	60,63,65,70,71,75	142	107	256	212	212	180	12	3	34.5	73	0.358	184	104.4
			80,85,90,95	172	132									0.415
			100,110,,120,125	212	167									0.499
			130,(135),140,150	252	202									0.575
GⅡCLZ10	22.4	2650	65,70,71,75	142	107	287	239	239	200	14	3.5	39	82	0.58	276	133.5
			80,85,90,95	172	132									0.6725
			100,110,,120,125	212	167									0.8025
			130,140,150	252	202									0.935
GⅡCLZ11	35.5	2350	110,,120,125	212	167	325	250	276	235	14	3.5	40.5	85	1.223	322	193
			130,140,150	252	202									1.41
			160,170,(175)	302	242									1.625
GⅡCLZ12	50	2100	130,140,150	252	202	362	286	313	270	16	4	44.5	95	2.39	404	290
			160,170,180	302	242									2.763
			190,200	352	282									3.093
GⅡCLZ13	71	1850	150	252	202	412	322	350	300	18	4.5	49	104	3.93	585	370
			160,170,180,(185)	302	242									4.535
			190,200,220,(225)	352	282									6.34
GⅡCLZ14	112	1650	170,180,(185)	302	242	462	420	335	—	22	5.5	86	148	6.9	1600	509
			190,200,220,	352	282									7.675
			240,250	410	330									8.6
GⅡCLZ15	180	1500	190,200,220,	352	282	512	465	380	—	22	5.5	91	158	12.425	2100	566
GⅡCLZ16	250	1300	220,	352	282	580	522	430	—	28	7	105	177	21.2	2500	974
			240,250,260	410	330									23.125
			280,300,320	470	380									26.35
GⅡCLZ17	355	1200	250,260	410	330	644	582	490	—	28	7	99	182	28.825	2700	1465
			280,(290),300,320	470	380									43.25
			340,360,(365)	550	450									49.5
GⅡCLZ18	500	1050	280,(295),300,320	470	380	726	658	540	—	28	8	111	215	69.5	3900	2160
			340,360,380	550	450									78.75
			400	650	540									90.5
GⅡCLZ19	710	950	300,320	470	380	818	748	630	—	32	9	116	220	122.5	5000	2892
			340,(350),360,380,(390)	550	450									139.5
			400,420,440,450,460,(470)	650	540									161.25
GⅡCLZ20	1000	800	360,380,(390)	550	450	928	838	720	—	32	10.5	124	235	240	6200	4680
			400,420,440,450,460	650	540									277.25
			530,(540)	800	680									335
GⅡCLZ21	1400	750	400,420,440,450,460	650	540	1022	928	810	—	40	11.5	128	245	435	7000	5905
			530,560,600	800	680									527.75
GⅡCLZ22	1800	650	450,460,480,500	650	540	1134	1036	915	—	40	13	131	255	701.25	8700	7504
			530,,560,600,630	800	680									852.25
			670,(680)	900	780
GⅡCLZ23	2500	600	530,,560,600,630	800	680	1282	1178	1030	—	50	14.5	150	290	1415.8	15000	11133
			670,(700),710,750,(770)	900	780									1638.8
GⅡCLZ24	3550	550	560,600,630	800	680	1428	1322	1175	—	50	16.5	159	305	2330.5	18000	16110
			670,710,750	900	780									2682.8
			800,850	1000	880									2976.3
GⅡCLZ25	4500	460	670,(700)710,750	900	780	1644	1538	1390	—	50	19	163	310	5174.3	23000	27797
			800,850	1000	80									5836.5
			900,950	—	980									6413
			1000,(1040)	—	1100									7198.3
